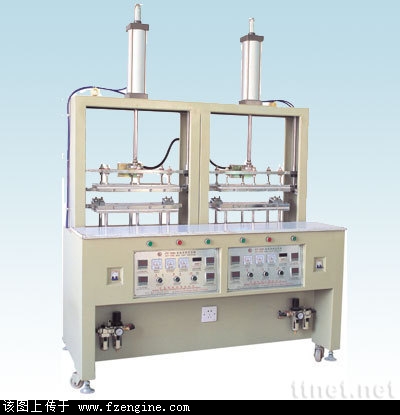

KV-168A/F-0气动罩杯定型机 KV-168A/F-0 Foam Cup Molding Machine 用途：主要用于文胸模杯及其他同类产品的定型生产。 特点： (1) 机体外形精巧，结构紧密，上下模易吻合，运作平稳。 (2) 采用内置式电热管装置，进口时间表及保温材料隔热控温。 (3) 本公司针对内衣模杯生产开发的特有温度控制系统，运用可控硅移相触发电流控制加热，可使发热更均匀、平稳、省电，节能效果佳，并可延长发热管使用寿命。 (4) 左右独立恒温控制及上下模双向驱动，均衡左右模杯温度；有效利用整机空间，克服传统温差过大造成的阴阳色差缺陷。 技术参数： 电源/功率：220V/8KW 电热片规格：Φ12×220mm×500W/200V 模台尺寸：450mm×220mm 机台尺寸：1450mm×700mm×1850mm 适用物料：文胸、服装等面料 适用模具：文胸棉杯模具 重量：350KG Function: It is mainly used for molding different foam cups and other similar products. Features: (1) It is delicate and exquisite in appearance and compact in structure. The upper moulds can be easily coincided with the lower moulds so as to operate steadily. (2) Equipped with the internal heating pipes, imported time meters and thermal insulation material to control temperature. (3) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life. (4) It adopts independent thermostatic controllers in both sides and upper and lower moulds bi-directional driver, which can balance the temperature of left and right moulds and make effective use of the whole space, overcoming the chromatic aberration caused by the difference in temperature. Technical parameter: (1) Power supply/power: 220V/8KW (2) Specification of the electro-thermal tube: Φ 12×220mm×500W/200V (3) Dimension of the mould table: 450mm×220mm (4) Dimension of the machine: 1450mm×700mm×1850mm (5) Suitable material: foam or fabric materials for bra and other garments. (6) Suitable moulds: moulds for foam cups (7) Weight: 350KG 欢迎广大广大用户来电咨询，联系人：陈佩英（手机；15817935595），谢谢支持！
